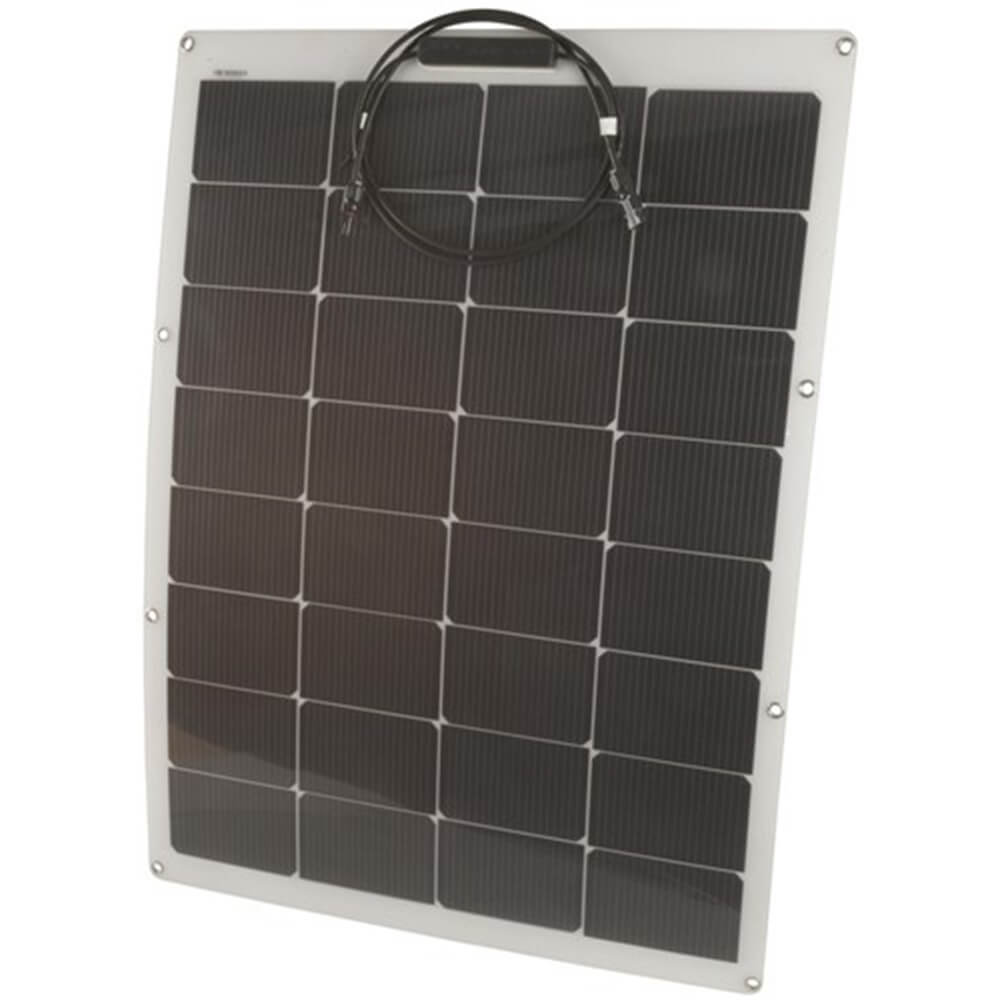

A lightweight and versatile mono-crystalline solar panel designed for RV, marine and camping applications. The advanced DF cell technology produces high conversion efficiency up to 20%, giving much more power for a smaller footprint, compared to our previous range of panels. The DF cell, identified by its 21 bus bars, is also flexible up to 30 degrees. This means you can mount the panel on a curved surface such as a boat deck or curved rooftop on your car, caravan, boat, etc.
Thanks to its lightweight design, 2.5mm thickness, and IP65 weatherproof rating, it is perfect for portable applications as well. The mounting holes allow you to secure it using rope for temporary applications or screws for permanent mounting. The short leads with MC4 PV connectors also make it easy to disconnect when you need to pack up and stow away for transport.
A blocking diode is built into the panel to prevent discharging a battery at nighttime, but we recommend you add a solar charge regulator to charge batteries more effectively.
Maximum recommended bending degree: 30 Degrees
- DC Voltage : 12.0V
- Continuous Power : 50.0W
- Operating Temperature : -40.000000 Degrees C
- Length : 690.0mm
- Width : 520.0mm
- Depth : 2.5mm
- Solar panel type : Monocrystalline
- Open Circuit Voltage : 20.5V
- Short Circuit Current : 3.55A
- Voltage at Power Max : 18.0V
- Current at Power Max : 2.94A
- Power Connector : 4mm PV Connector (MC4 Style)
- Bypass Diode Included : true
|Length : 71 cm||Width : 54.5 cm|
|Height : 5 cm|
