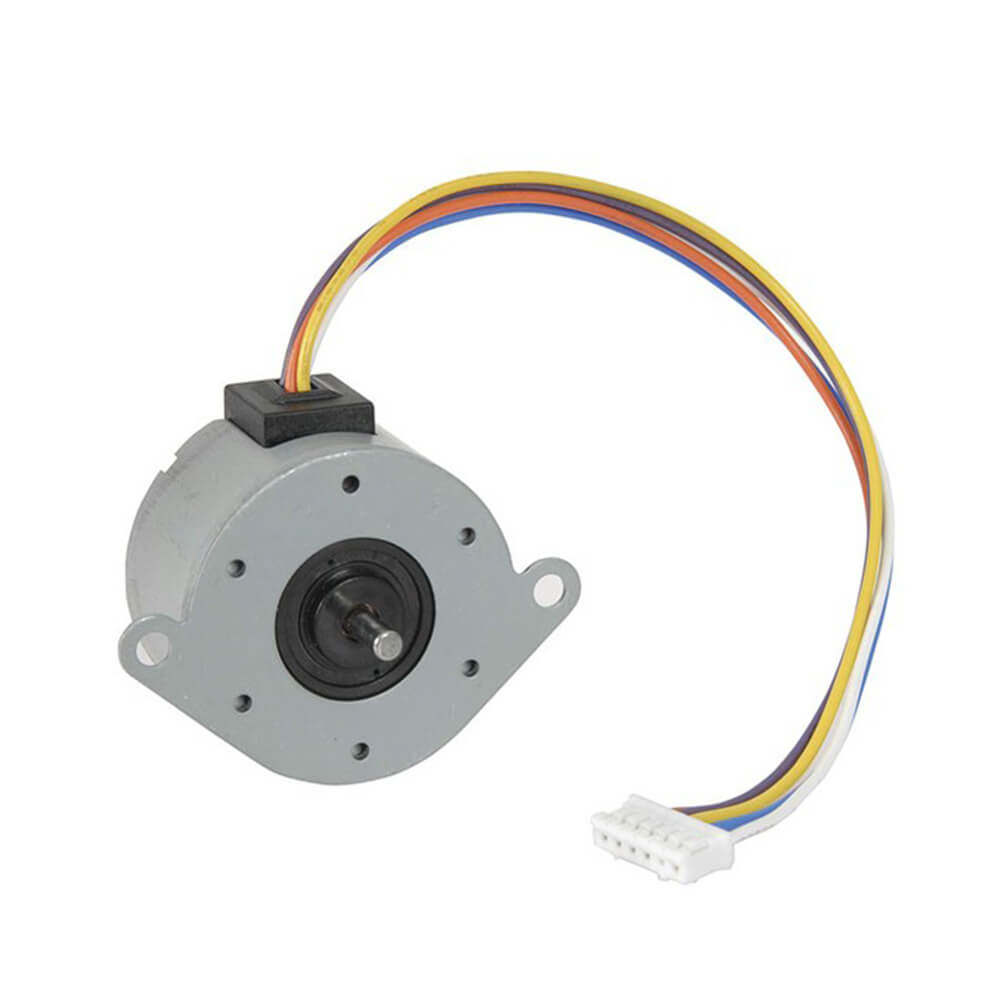

Standard 48 step / 7.5Deg design.
Flange mount 3.0mm hardened steel shaft.
Specifications:
Rated voltage: 12VDC
Rated current: 1.1A/phase
Phases: 4
Steps per revolution: 48
Stepping angle: 7.5Deg
Drive method: Unipolar chopper drive
Resistance per winding: 20 ohms
Starting frequency: 600pps (max)
Holding torque: 700g/cm
Product Specifications
- DC Voltage : 12V
- Packaged Volume : 0.14l
- Packaged Weight : 0.09kg
- Packaged Length : 9cm
- Packaged Width : 7.5cm
- Packaged Height : 2cm
- Motor Nominal Voltage : 12V
- Max. efficiency current : 1.1A
| Length : 9 cm |
Width : 7.5 cm |
| Height : 2 cm |
