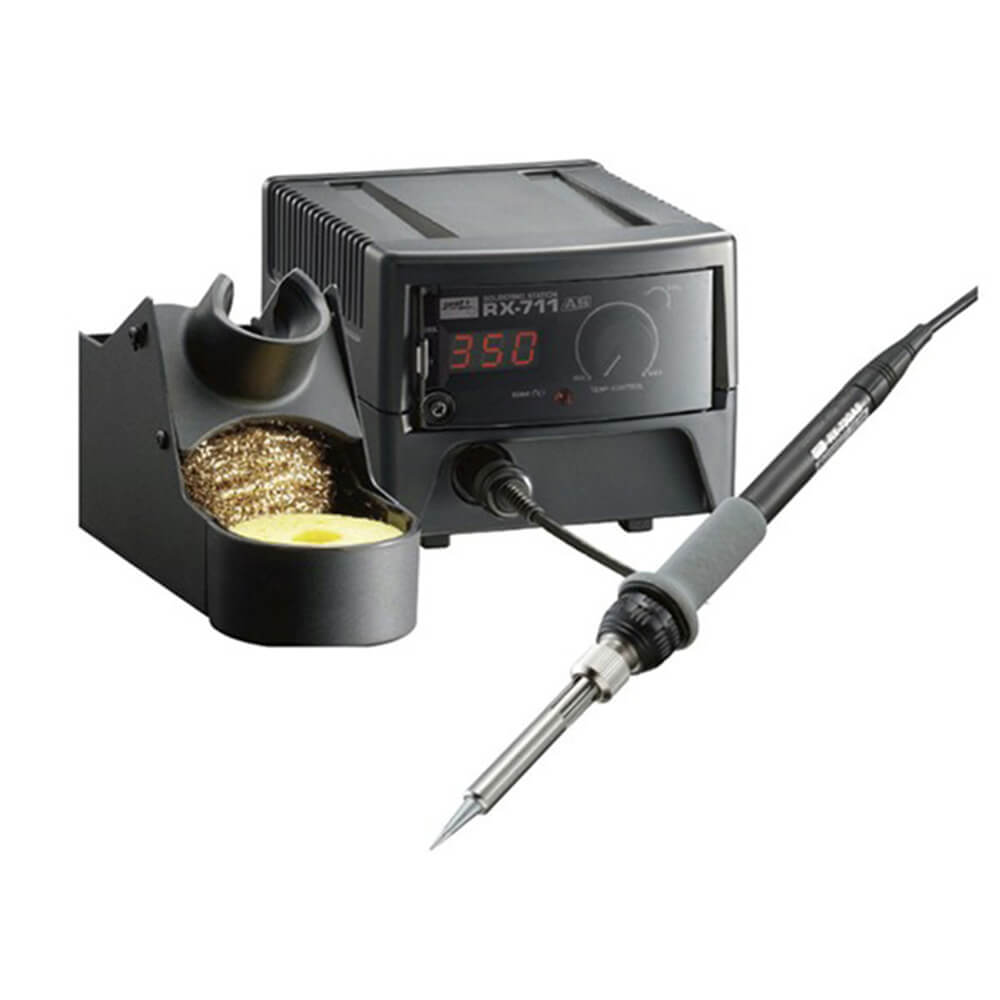

The RX-711AS soldering station is a precision, Japanese manufactured instrument with excellent temperature stability and anti-static characteristics.

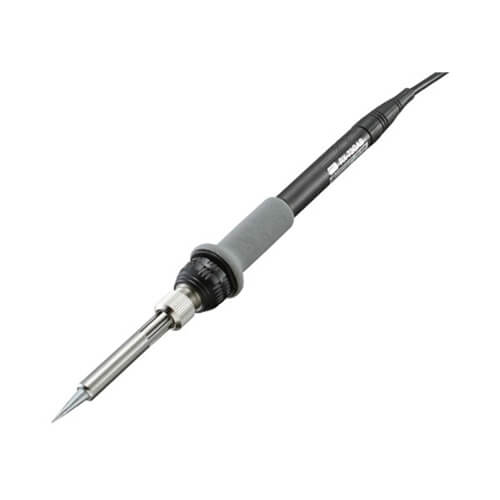

The light weight soldering pencil has a grounded tip and incorporates a ceramic heater with an integral temperature sensor. The sensor provides precise tip-temperature information to the heater controller which maintains the selected heat setting with a high degree of accuracy. Temperature stability is further enhanced by designing the heater to actually fit within a matching recess in the tip. This allows faster heat transfer and therefore better tip-temperature recovery during heavy soldering. The soldering pencil is fitted with a silicon rubber grip for added handling precision and a 1.1 metre long silicone sheathed cord attaches to the console controller via a 5 pin DIN connector. The silicone cord is incredibly supple.

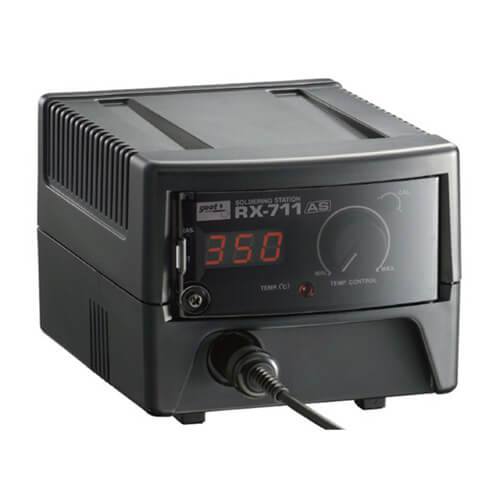

The control panel includes the digital temperature display panel, a rotary temperature control, calibration control and a display changeover switch to display either the desired or actual tip temperature. The panel is secured behind a darkened see-through cover which prevents accidental temperature changes but can be easily accessed when required.
- Safety approval number QASTE4930.
- 230-240VAC supply voltage
- 24VAC output voltage
- 65 Watt capacity heater
- 200 - 480 Degrees C temperature range
- +-3 Degrees C temperature hysteresis
- 1.1Mtr iron cable
- 1.3Mtr mains cable
- 0.5mm tip supplied
- Cat. TS-1441 0.5mm tip as supplied with iron
- Cat. TS-1442 0.2mm tip
- Cat. TS-1445 replacement sponge
- Temperature display : LCD
- Temp selection method : Dial
- Removable/Replacable Pencil : true
- Pencil Voltage : 24.0V
- Analogue or Digital? : Digital
- Length : 146.0mm
- Width : 115.0mm
- Height : 98.0mm
- Cable length : 1.1m
- Mains Voltage Range : 240.0V
- Rated for AU Mains : true
- Soldering iron type : Soldering Station
- Soldering Power Rating : 65.0W
- Temperature : 200.0 Degrees C, 480.0 Degrees C
- Temperature Regulated : true
- Spare Tips Available : true
- Alternate Tips Available : true
- ESD Iron : true
- Lead free iron : true
- Fitting on Iron : Collar
|Length : 25.6 cm||Width : 21.6 cm|
|Height : 14.4 cm|
