Description

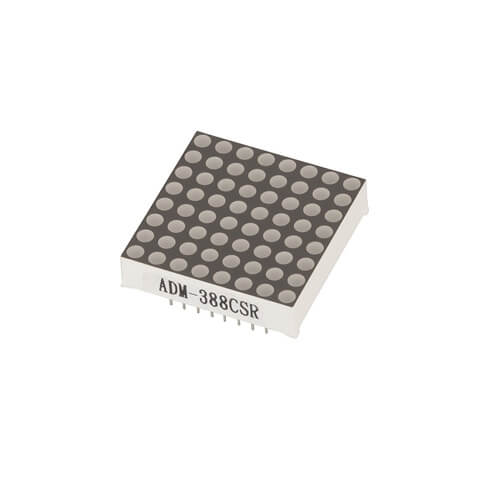

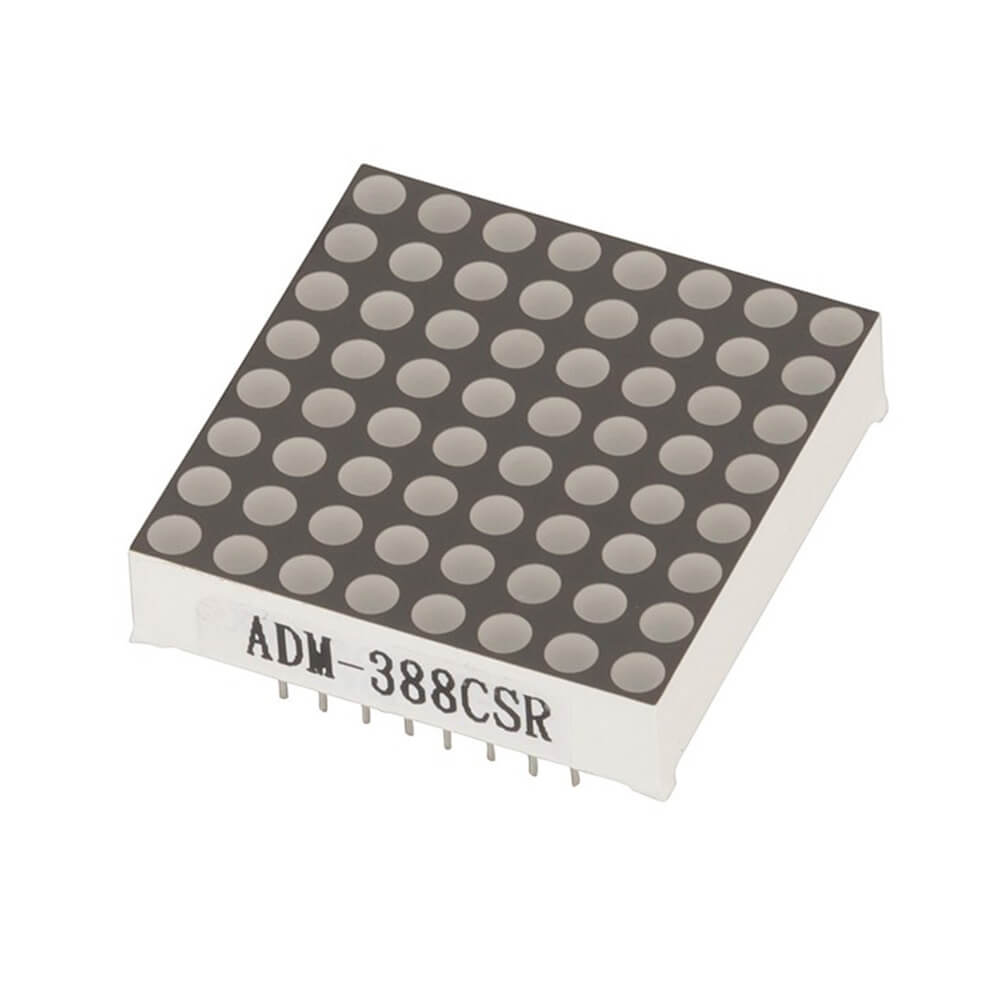

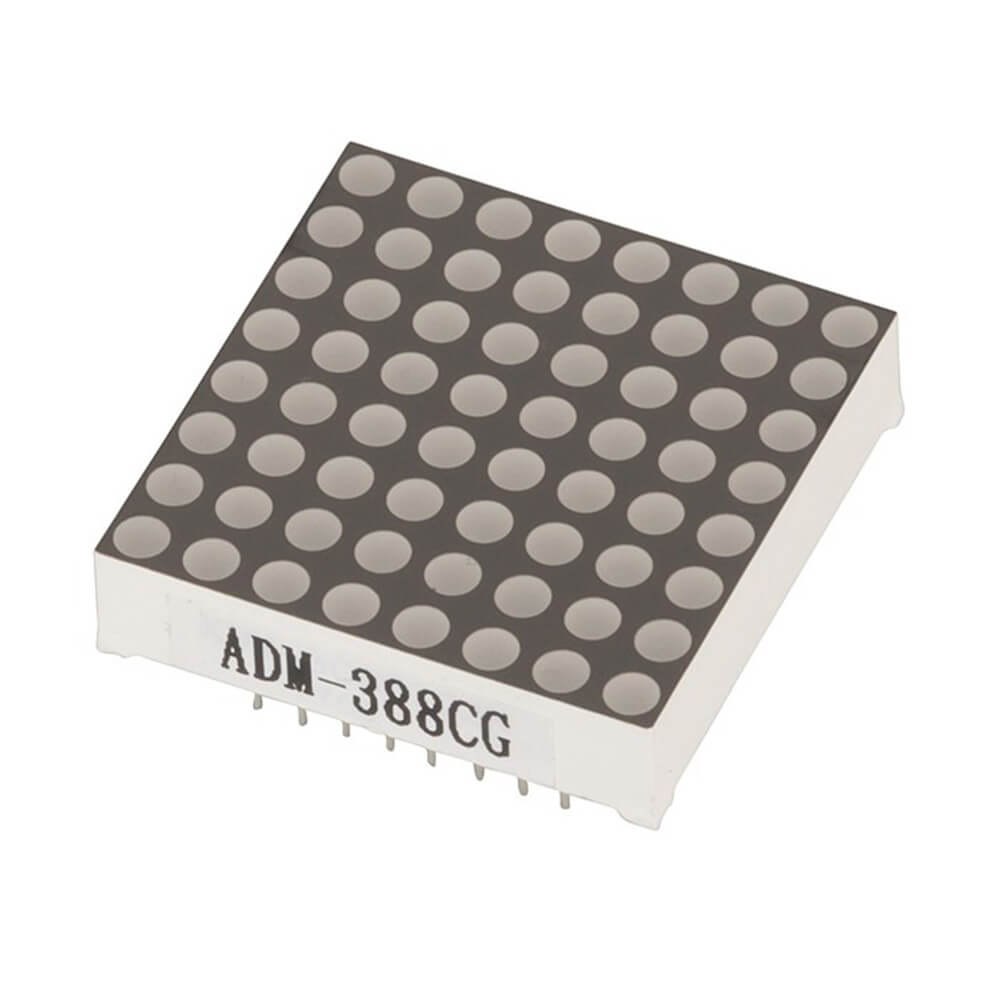

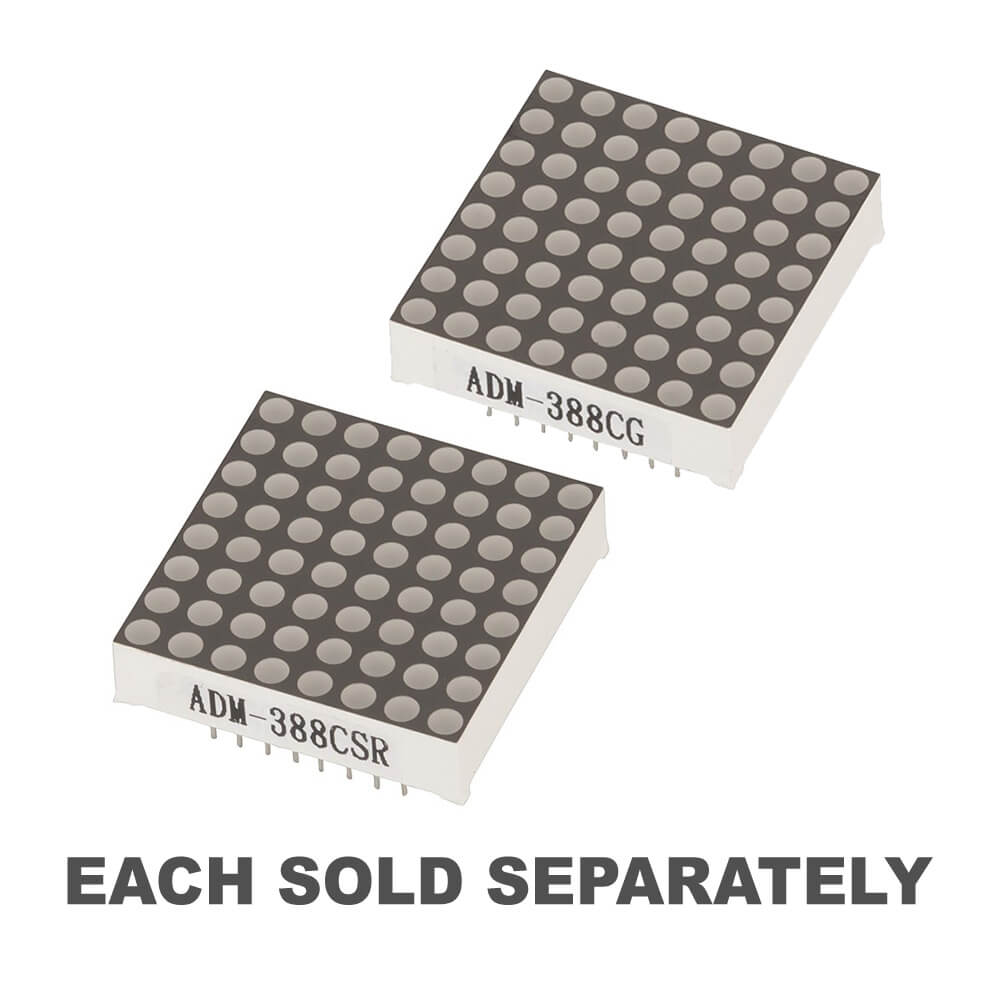

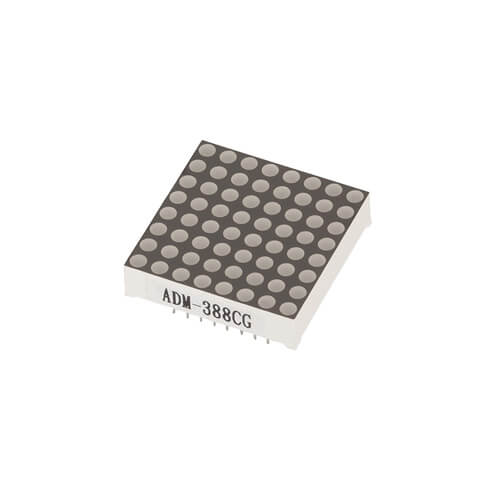

8x8 LED matrix module for simple graphical output display. Ideal for display of symbols, basic data, or graphics. 16 pin connection with 8 anode pins for column and 8 cathode pins for rows. Available in red or green.
Product Specifications
- Width : 32mm
- Height : 32mm
- Depth : 8mm
- Packaged Volume : 0.02l
- Packaged Weight : 0.01kg
- Packaged Length : 3.2cm
- Packaged Width : 3.2cm
- Packaged Height : 1.5cm
- Illumination Type : Single Colour
- Light Colour : Green
- Light Wavelength : 568nm
- Intensity : 15mcd
- Vf (typ) - Typical Forward Voltage : 2.2V
- If (typ) - Typical Forward Current : 40mA
| Length : 3.2 cm | Width : 3.2 cm |
| Height : 1.5 cm |
