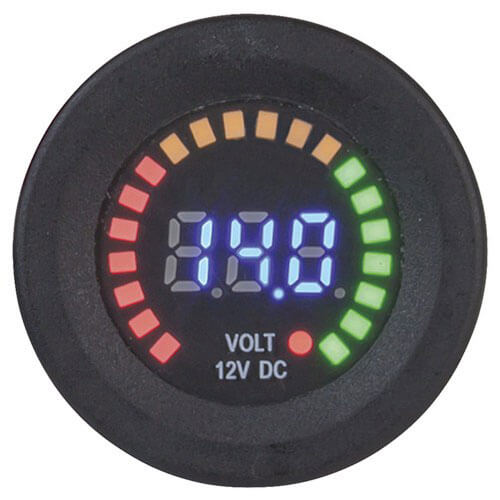

LED Voltmeter 5-15VDC w/ Bar Graph

A quick and simple way to monitor the battery voltage in a vehicle, this voltmeter simultaneously shows the voltage numerically and on a bar graph. Simply wire up to a DC power source between 5-15VDC, and the blue LED voltmeter displays the voltage. The colour coded LED bar graph shows the voltage level on a scale from 11.3 to 13.2 volts, optimal for vehicle battery condition.

Product Specifications

• Supplied with brackets for panel or surface mounting
• Connection is via 6.3mm spade terminals
• Also available with additional modules
• DC Volts Measurement Range : 5.0V, 15.0V
• Digits Displayed : 3.0 digit
• Display Type : LED
• Display Backlight : Blue LED Backlit
• Bargraph : true
• Width : 60.0mm
• Height : 42.0mm
• Dimensions for : Including Bracket
• Dimension details : Panel Mounting
• Mounting Method : Panel
• Attachment / Securing Method : Collar / Nut
• Dimension details : Including Bracket
• Dimensions for : Under Dash / Surface Mount Hood
• Width : 55.0mm
• Height : 50.0mm
• Depth : 80.0mm
• Dimensions for : Without Bracket
• Dimension details : Voltmeter Module
• Depth : 40.0mm
