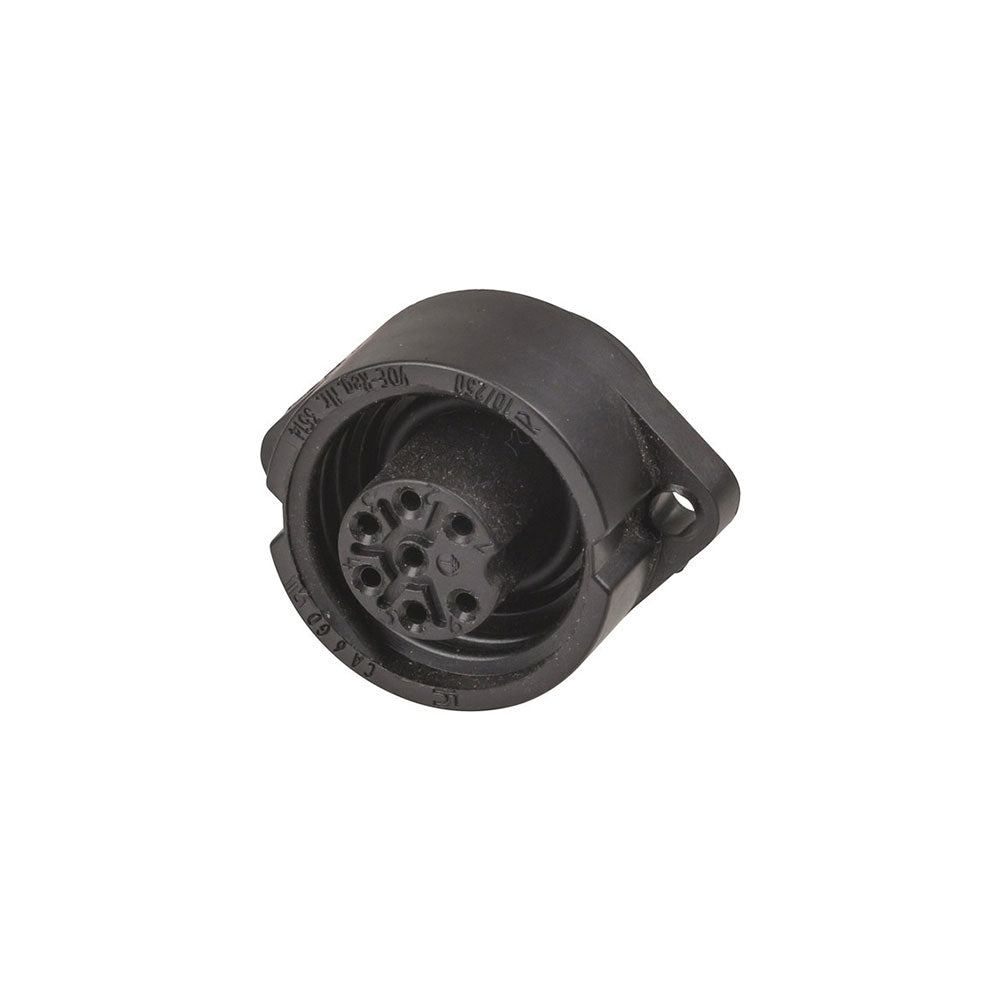

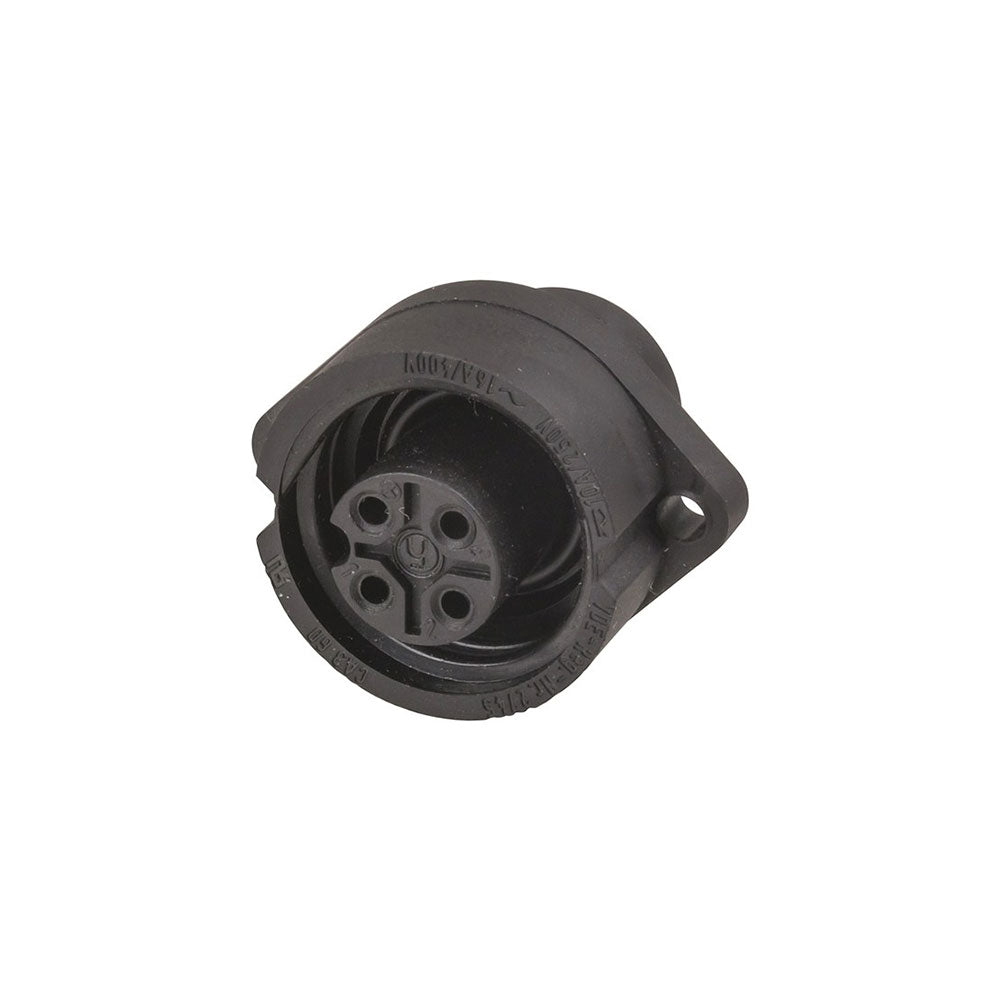

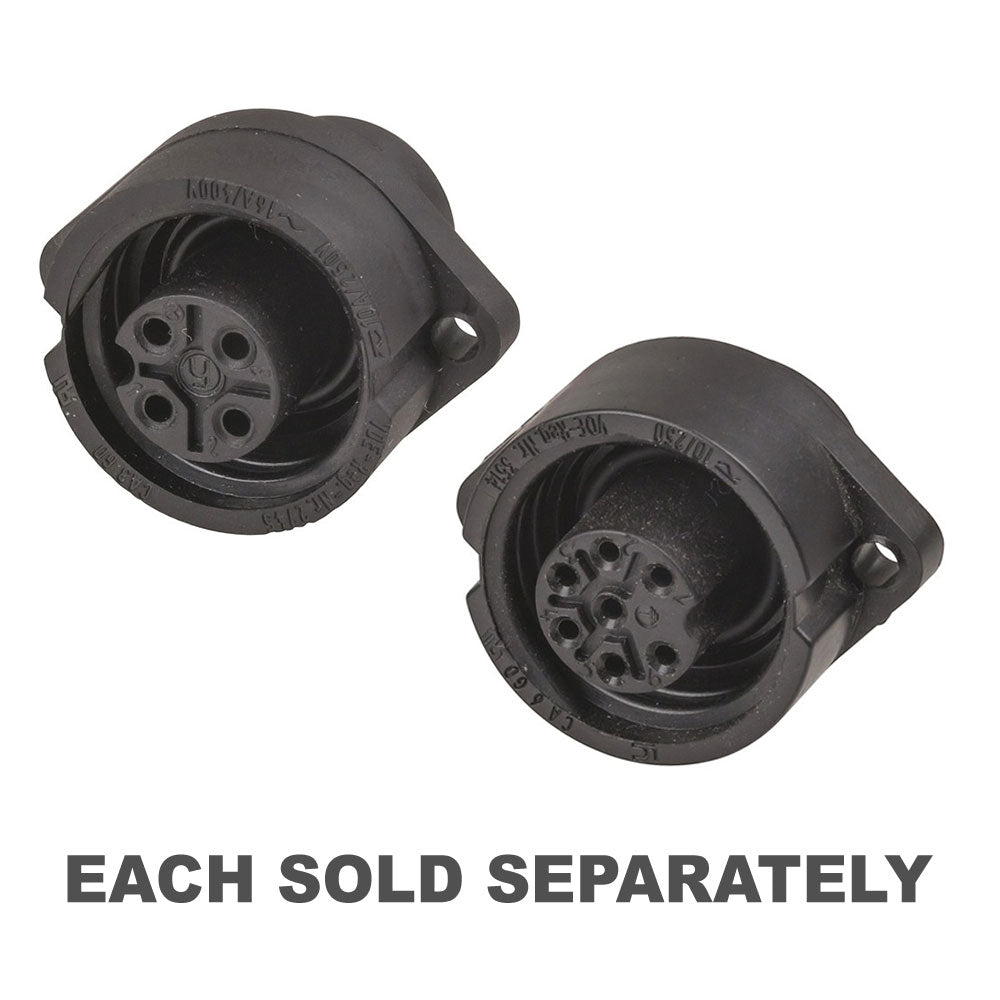

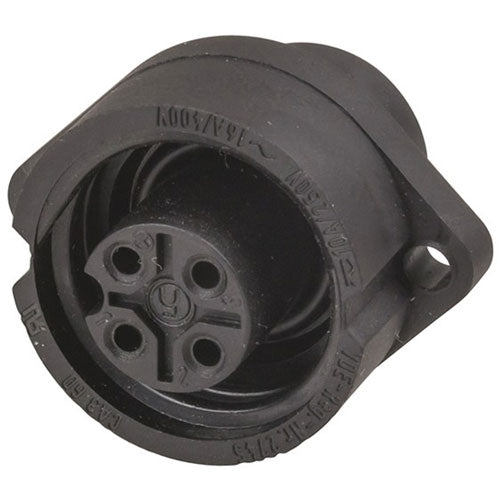

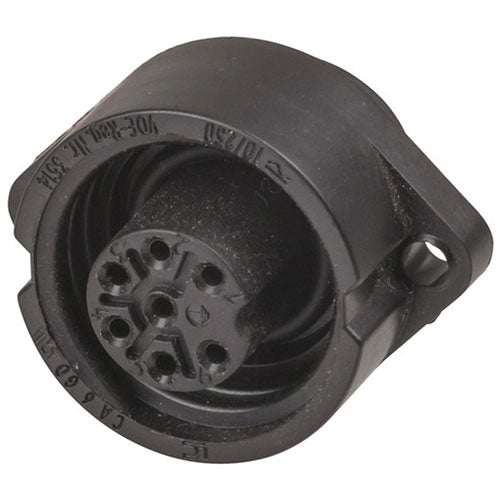

Hirschmann C16-1 Series or similar connectors offer 4 or 7 way (3 and 6 with plus a P.E. - or pre-engaging - earth contact). The mating parts securely screw together to form environmental protection to IP-67. For further technical information see specifications. A quality industry-standard connector.
Product Specifications
- Insulation resistance: ≥ 10^8ohm
- Contact Resistance: ≤5mohm
- Contact Material: Silver
- Contact Screw: Solder
- Wire Conductor (max): 2.5mm²
- Temperature range: -40DegC to + 100DegC
- Protection: IP67 to IEC60529/DIN40050
- Housing: Polyamide 6.6
- Strain Relief: Screw clamp/Ring & Gland Nut (9mm)
| Length : 3 cm |
Width : 4 cm |
| Height : 3 cm |
