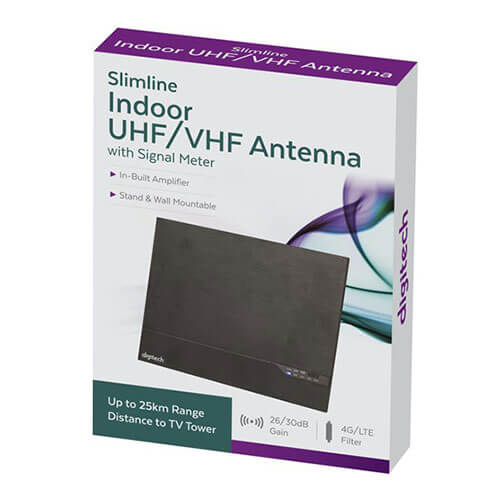

Slimline Indoor UHF/VHF Antenna with Signal Meter Display

This slimline indoor antenna can be used on a table or mounted on a wall using the supplied hardware. It features an LED signal strength meter which helps you position the antenna for best reception. An in-built automatic gain amplifier boosts the UHF and VHF signals and includes an internal 4G/LTE filter. Suitable to use with DVB-T/DVB-T2 and a signal range capable of up to 25km away from the TV tower.

Features:

• Up to 25km TV Transmitter Range
• LED Signal Strength Meter
• In-Built Amplifier
• Automatic Gain Control
• Stand & Wall Mountable

Includes:

• 1 x Slimline Indoor UHF/VHF Antenna
• 1 x Antenna Stand
• 1 x Mains Power Adaptor
• 1 x Wall Mounting Hardware

Product Specifications

• DC current rating : 80.0mA
• DC Voltage : 6.0V
• Width : 305.0mm
• Height : 230.0mm
• Depth : 20.0mm
• Mounting Method : Desk Stand
• RF type : PAL/Belling-Lee
• RF impedance : 75.0Ohm
• Antenna Type : Flat Panel
• Usage Location : Indoor
• Reception Bands : TV Band 1, TV Band 2, TV Band 3: 174-230MHz, TV Band 4: 526-582MHz
• UHF Frequency Range : 470.0MHz, 862.0MHz
• UHF Channel Range : 25.0ch, 69.0ch
• UHF Gain : 26.0dB
• VHF Frequency Range : 170.0MHz, 230.0MHz
• VHF Channels Covered : 6.0ch, 12.0ch
• VHF Gain : 30.0dB
