Jacobs Electric Ladder Kit (Mk3 02/13)

Assembly Required

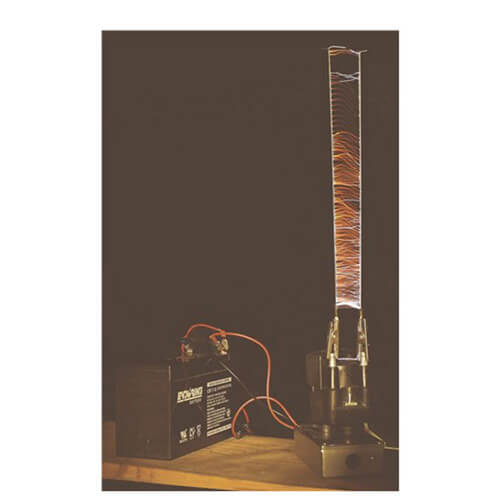

Refer: Silicon Chip Magazine February, 2013. A spectacular rising ladder of bright and noisy sparks for theatre special effects or to impress your friends. This improved circuit has even more zing and zap than it's previous design from April 2007 and requires the purchase of a VS Commodore 12V ignition coil (available from auto stores and parts recyclers). Kit supplied with silk-screened PCB, diecast enclosure (111 x 60 x 30mm), pre-programmed PIC, PCB mount components and pre-cut wire/ladder. Powered from a 12V 7Ah SLA or 12V car battery.

Product Specifications

• Kit Group : General Projects
• Difficulty : Complex
• Estimated Construction Time : 2.0hr
• Tools required : Long Nose Pliers, Soldering Iron, Flat Head Screwdriver
• Application Field : Jacobs Ladder MK3
• Additional required items : VS Commodore 12V ignition coil
• Length : 111.0mm
• Width : 60.0mm
• Height : 30.0mm
