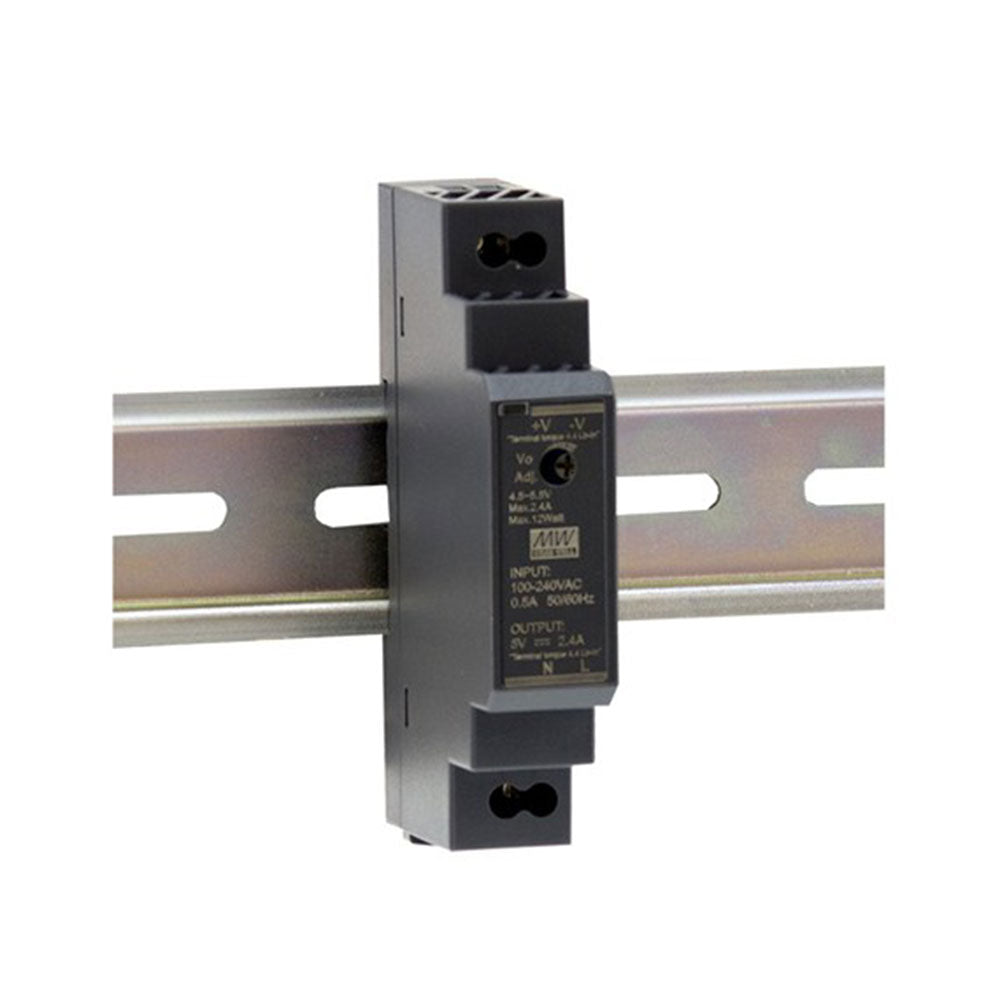

Mean Well HDR DIN Rail power supplies are available in 15W, 30W, or 60W and feature an ultra-slim, step shape plastic housing. The HDR family specially adopts the European Union standard DIN EN43880 and slim design with a height of 90mm and the width are only 1SU to 3SU (17.5mm/35mm/52.5mm). They also feature efficiencies up to 91%, adjustable (+/-10%) DC output voltage, and a working temperature range of -30 to +70 Degrees Calcic.
Product Specifications
- Short circuit / overload / over voltage protections
- DIN rail TS-35/7.5 or 15 mountable
- Pass LPS (limited power source)
- Isolation class II
- Cooling by free air convection
- LED indicator for power on
- DC Current: 0.63a
- DC Voltage: 24v DC
- Continuous Power rating: 15w
- Length: 90mm
- Width: 17.5mm
- Depth: 54.5mm
- AC Voltage: 120-370v AC
- Efficiency: 86%
| Length : 10 cm |
Width : 8 cm |
| Height : 2 cm |
