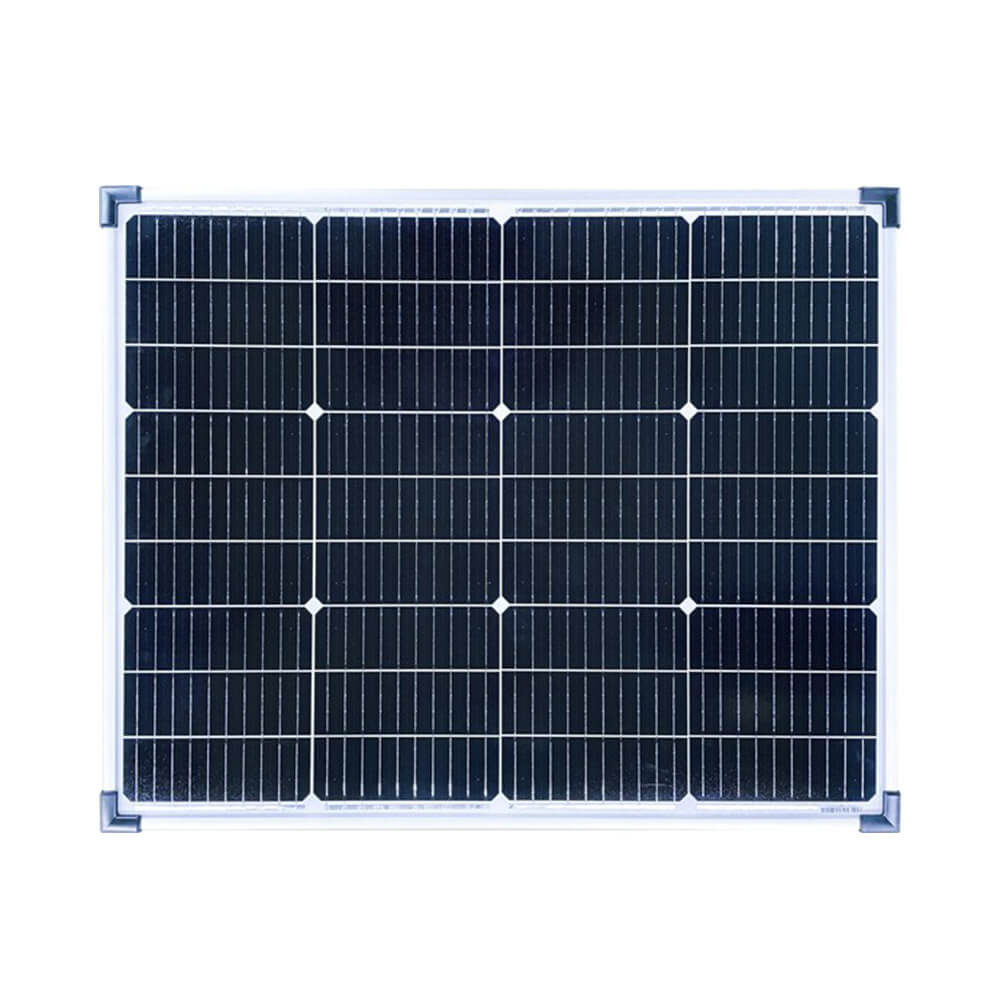

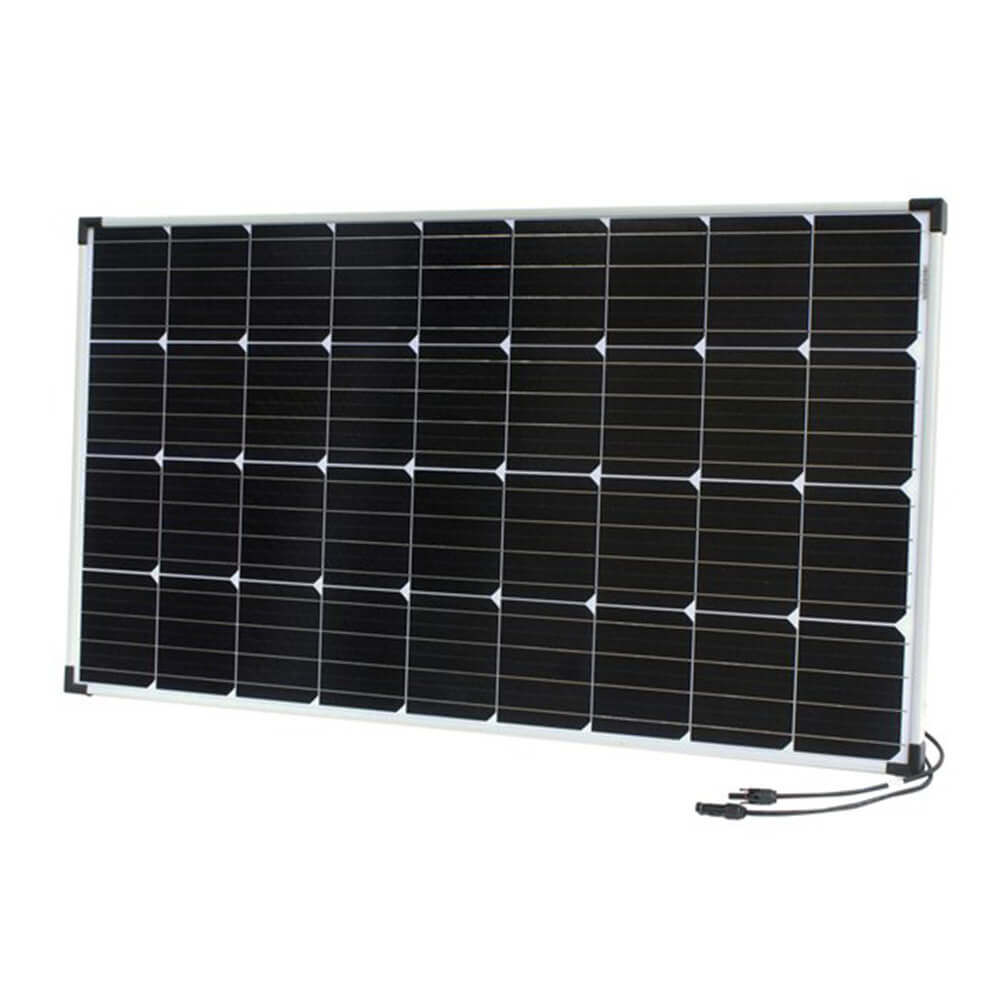

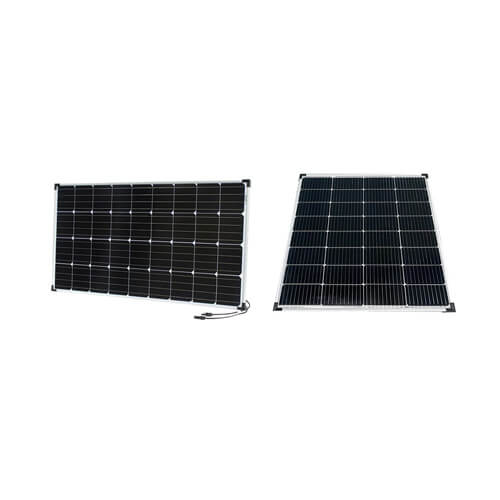

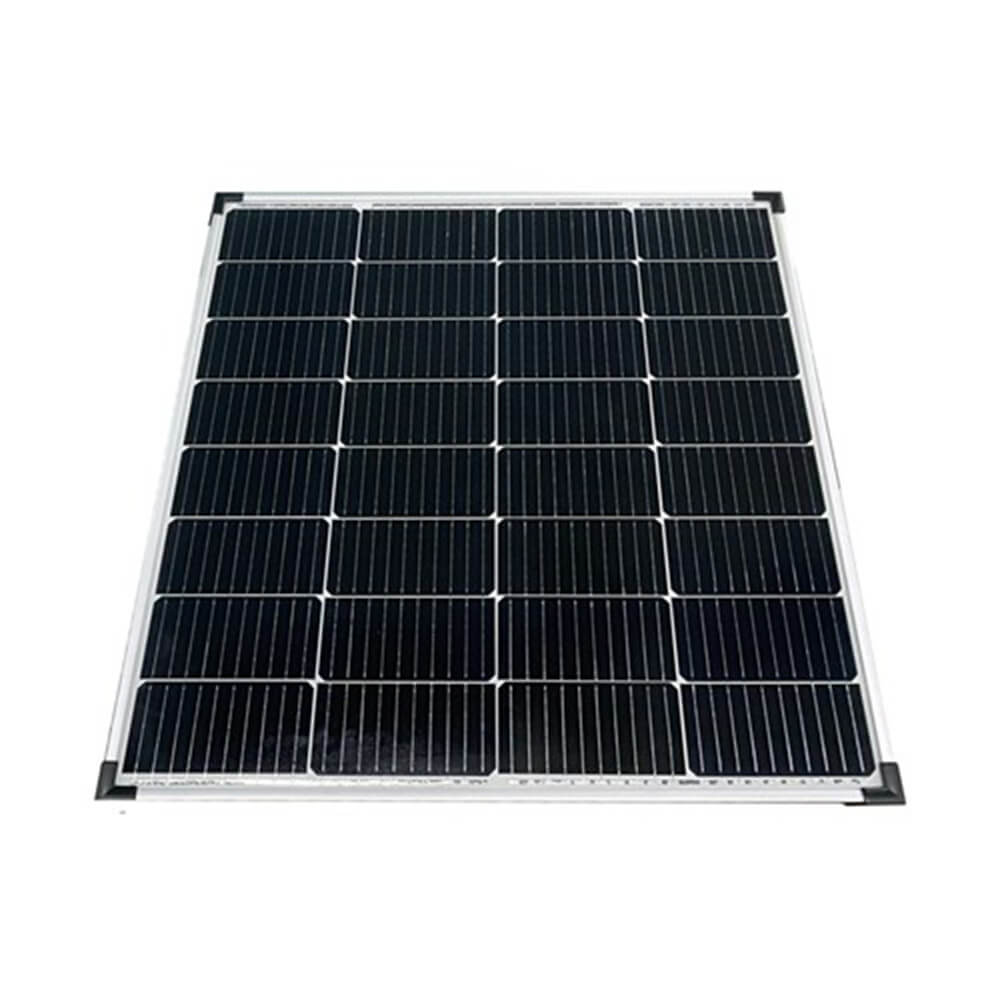

Monocrystalline Solar Panel (12V)

High performance monocrystalline panels designed for environmental conditions with a durable anodised aluminium frame and 3.2mm low iron tempered glass. Junction box included.

Product Specifications

• DC Voltage : 12V
• Continuous Power : 170W
• Power tolerance : 3%
• Length : 1480mm
• Width : 680mm
• Height : 35mm
• Weight : 10.6kg
• Packaged Volume : 52.27l
• Packaged Weight : 11.89kg
• Packaged Length : 151.5cm
• Packaged Width : 69cm
• Packaged Height : 5cm
• Solar panel type : Monocrystalline
• Cover Material : tempered glass
• Open Circuit Voltage : 22.62V
• Short Circuit Current : 9.47A
• Voltage at Power Max : 18.85V
• Current at Power Max : 9.02A
• Power Connector : 4mm PV Connector (MC4 Style)
• Bypass Diode Included : true
