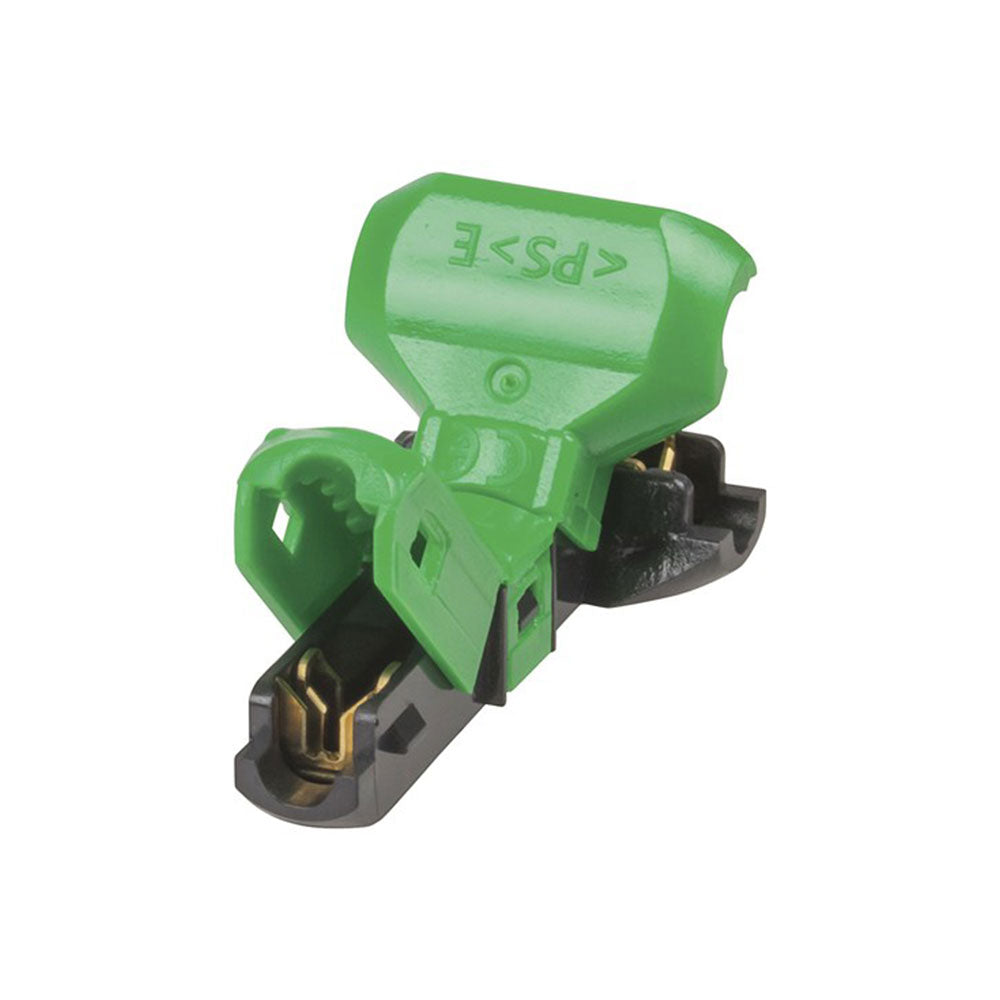

Designed to reduce electrical installation time and to increase efficiency. These easy-to-use connectors eliminates the need to strip, twist and crimp connect wires. Simply insert your wire into the clamp opening and snap it shut using your hands or small pliers depending on wire gauge to make the connection. The precision-sharpened connector blades borrows the IDC configuration that cut through the wires create a connection.
Available in two shapes - "I" type and "T" type. "I" type are used for end to end connections whereas the "T" type for parallel connections. Ideal for applications such as: low voltage LEDs, residential, automotive, communication and broadcasting.
Product Specifications
- Avoid stripping, twisting or crimping cables together
- Eliminates need to tape cables
- Creates an IP33 connection
- Electrically Safety approved
- Handles up to 600VAC
- RoHS compliant
- Max current (240VAC): 10A
- Connection loss (Ohm): 0.0010
| Length : 14.1 cm |
Width : 5.1 cm |
| Height : 2.5 cm |
