PSU LED 48V 120W 2.5A MW PWM-120-48

Roll over image to zoom in Click on image to zoom

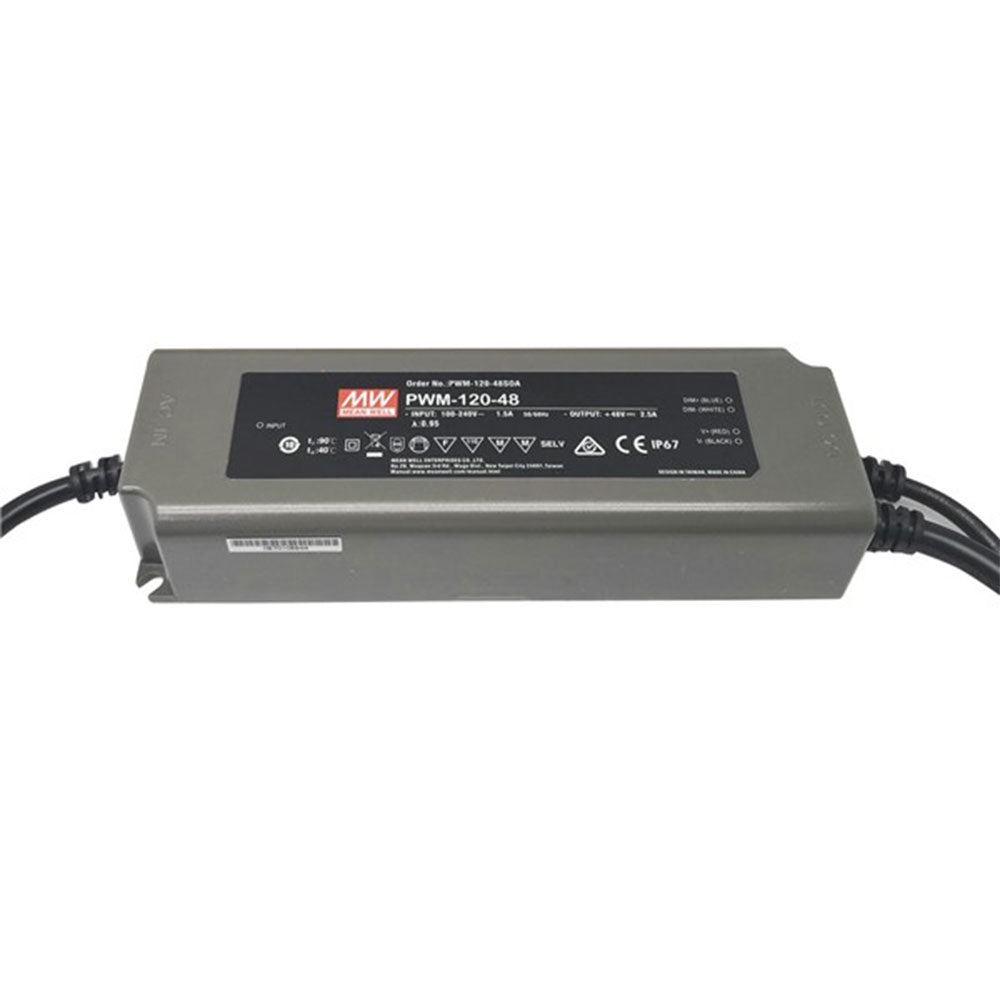

PSU LED 48V 120W 2.5A MW PWM-120-48

PSU LED 48V 120W 2.5A MW PWM-120-48

On back order

Mean WellSKU: 198127

Constant Voltage PWM Design
Short Circuit, Overload and Overvoltage Protection
Plastic Housing with Class II Design
No Load Power Consumption <0.5W
IP67 Rated
Output Voltage: 48VDC
Current: 2.5A
Power: 120W
Dimming Range: 0-100%
Input Voltage: 90-305VAC, 127-431VDC
Input Frequency: 47-63Hz
Inrush Current: 60A@230VAC
Working Temperature: -40 to 90 Degrees Celsius
Dimensions: 191(L) x 63(W) x 37.5(H)mm

Price:

$115.99

Stock:

Out of stock

Quantity:

5% OFF on Already Discounted Items!

Share this product

120W AC/DC constant voltage LED power supply with PWM output.

Includes a customised input lead.

Product Specifications

Constant Voltage PWM Design
Short Circuit, Overload and Overvoltage Protection
Plastic Housing with Class II Design
No Load Power Consumption <0.5W
IP67 Rated
Output Voltage: 48VDC
Current: 2.5A
Power: 120W
Dimming Range: 0-100%
Input Voltage: 90-305VAC, 127-431VDC
Input Frequency: 47-63Hz
Inrush Current: 60A@230VAC
Working Temperature: -40 to 90 Degrees Celsius
Dimensions: 191(L) x 63(W) x 37.5(H)mm
