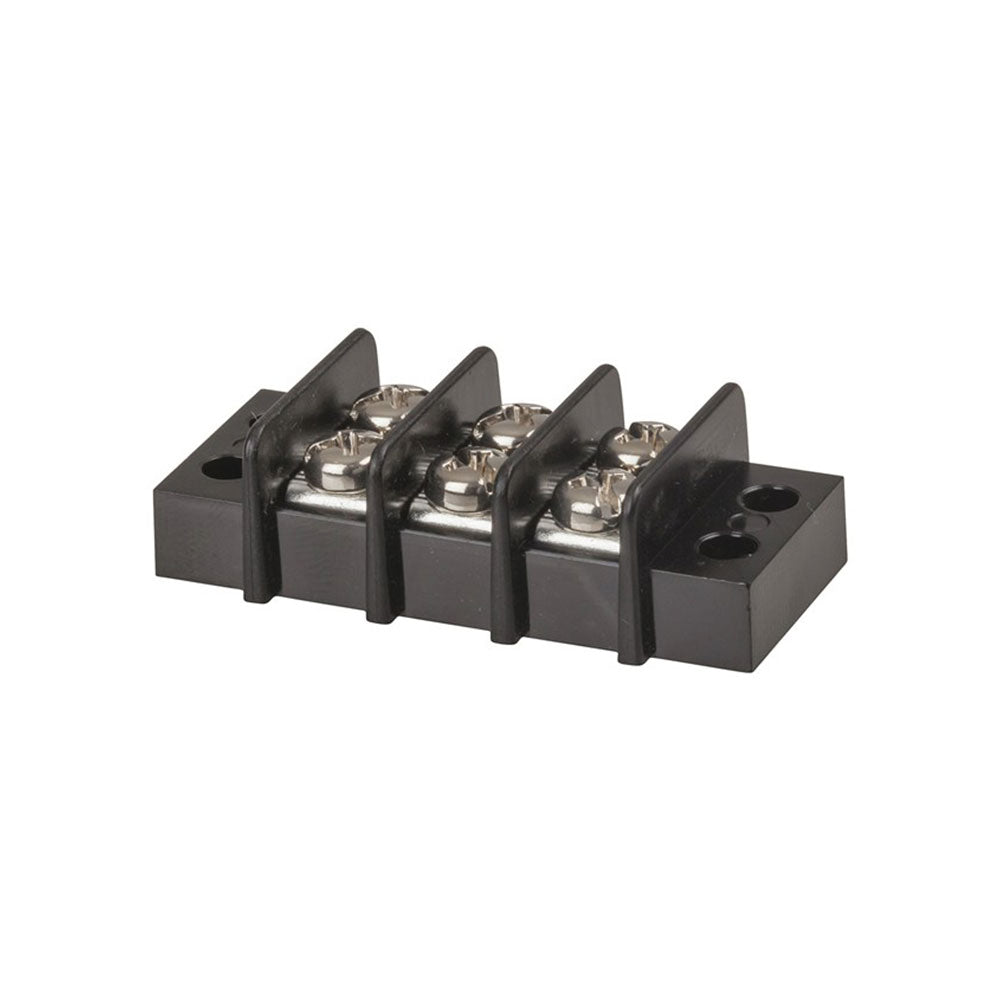

These units feature the ability to terminate 2 or 3 sets of wires securely with the option of changing or adding connections. In classic barrier strip fashion there is a comprehensive fence between each terminal. Each sturdy block has 2 x 4mm mounting holes at each end and a insulating body with high impact plastic.
Product Specifications
- AC current rating : 25A
- AC Voltage rating : 300V
- Mounting Method : Surface
- Packaged Volume : 0.02l
- Packaged Weight : 0.01kg
- Packaged Length : 4.6cm
- Packaged Width : 2.3cm
- Packaged Height : 1.5cm
- Type : Screw Terminal
- Device : Terminal
- Attachment Method : Screw Terminals
- Number of Contacts : 3pc
- Insulation Dielectric Voltage Rating : 2000V
- Insulation Resistance : 500MΩ
- Body Material : Plastic
| Length : 4.6 cm |
Width : 2.3 cm |
| Height : 1.5 cm |
